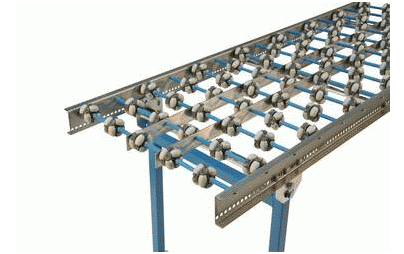

Multi-directional mini-roller conveyor

General user infornation:

  • multi-directional mini-roller conveyors are for direction changes in a conveyor section, or for turning and general moving of packages, eg. at workplaces.
  • Transported goods need to have flat, hard, stable, clean and dry bases. The goods must be at least 200 mm wide.
  • The smallest item must rest on at least 3 mini-rollers.(axle distance x 3 = minimum length)
  • Multi-directional mini-roller conveyors are normally operated in combination with light roller and mini-roller conveyors. The construction and load capacity is compatible with these conveyor types.

Frame:
galvanised steel U-forn 20/70/20x2 mm
with scewed cross bars.

Mini-rollers:
plastic Ø 48 mm mini-rollers with bush bearings
and laterally offset positioned mini barrel rollers
for lateral movement.

Mini-roller alignment:

  • width 300mm - 3 rollers per axle, offset.
  • Width 400mm - 4 rollers per axle, offset.
  • Width 500mm - 5 rollers per axle, offset.
  • Width 600mm - 6 rollers per axle, offset.
  • Width 800mm - 8 rollers per axle, offset.

* Please note:
With an axle interval of 75 mm we deliver
  - instead of 1000 mm length - 975 mm length
 - instead of 2000 mm length - 1950 mm length

Multi-directional mini-roller conveyors can also be
supplied in alternative lengths.

 Multi-directional mini-roller conveyor
lane width (mm)
 		 total width (mm)
 		 axle separation (mm)
 		 art.num.
0,5 m		 art.num.
1,0 m		 art.num.
1,5 m		 art.num.
2,0 m
300 340 50 AR.001 AR.021 AR.041 AR.061
300 340 75 * AR.002 AR.022 AR.042 AR.062
300 340 100 AR.003 AR.023 AR.043 AR.063
300 340 125 AR.004 AR.024 AR.044 AR.064
400 440 50 AR.005 AR.025 AR.045 AR.065
400 440 75 * AR.006 AR.026 AR.046 AR.066
400 440 100 AR.007 AR.027 AR.047 AR.067
400 440 125 AR.008 AR.028 AR.048 AR.068
500 540 50 AR.009 AR.029 AR.049 AR.069
500 540 75 * AR.010 AR.030 AR.050 AR.070
500 540 100 AR.011 AR.031 AR.051 AR.071
500 540 125 AR.012 AR.032 AR.052 AR.072
600 640 62,5 AR.013 AR.033 AR.053 AR.073
600 640 75 * AR.014 AR.034 AR.054 AR.074
600 640 100 AR.015 AR.035 AR.055 AR.075
600 640 125 AR.016 AR.036 AR.056 AR.076
800 840 62,5 AR.017 AR.037 AR.057 AR.077
800 840 75 * AR.018 AR.038 AR.058 AR.078
800 840 100 AR.019 AR.039 AR.059 AR.079
800 840 125 AR.020 AR.040 AR.060 AR.080
