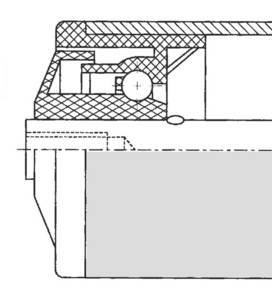

Conveyor roller bearing
Plastic bearing liner, grey with single row ball bearing
Payload max. 5 kg/bearing at ø 20 mm
Payload max. 7 kg/bearing at ø 30 and 40 mm
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
20X1,0 |
104 |
|
30X1,0 |
114 |
|
40X1,5 |
124 |
|
 |

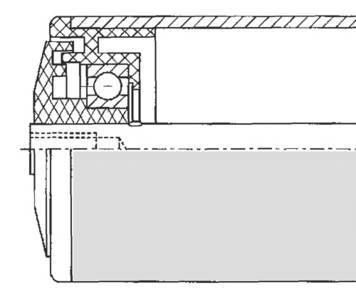

Conveyor roller bearing
Plastic bearing liner, blue with dual row ball bearing
Payload max. 10 kg/bearing
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
50X1,5 |
134 |
|
 |
Conveyor roller bearing
Sheet Steel bearing liner, galvanised with single row ball bearing
Payload 80 kg/bearing
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
40X1,5 |
144 |
|
50X1,5 |
154 |
|
60X2 |
164 |
|
External thread
 |
Axles-Ø (mm)
|
art.num.
|
|
6 mm |
A 6 |
|
8 mm |
A 8 |
|
10 mm |
A 10 |
|
12 mm |
A 12 |
|
|
|
|
|
Internal thread
 |
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
C 10 |
|
12 mm |
C 12 |
|
|
|
|
|
Flat axle end
 |
Axles-Ø (mm)
|
art.num.
|
|
6 mm |
D 6 |
|
8 mm |
D 8 |
|
10 mm |
D 10 |
|
12 mm |
D 12 |
|
|
|
|
|
Spanner flat
 |
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
E 10 |
|
|
|
|
|
Spring axle
 |
Axles-Ø (mm)
|
art.num.
|
|
6 mm |
F 6 |
|
8 mm |
F 8 |
|
10 mm |
F 10 |
|
|
|
|
|
Katalogseite: 156
 |
Conveyor roller bearing
Sheet Steel bearing liner, zinc plated with single row ball bearing and plastic hub
Payload max. 120 kg/bearing
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
50X1,5 |
174 |
|
60X2,0 |
184 |
|
80X2,0 |
194 |
|
 |
Conveyor roller bearing
Plastic bearing liner, blue with heat seal and ball bearing
Payload 80 kg/bearing
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
50X1,5 |
204 |
|
60x2,0 |
214 |
|
80x2,0 |
224 |
|
External thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
8 mm |
A 8 |
|
10 mm |
A 10 |
|
12 mm |
A 12 |
|
14 mm |
A 14 |
|
20 mm |
A 20 |
|
|
|
|
|
Stepped axle with external thread
 |
Axles-Ø (mm)
|
art.num.
|
|
20 mm |
B 20 |
|
|
|
|
|
Internal thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
C 10 |
|
12 mm |
C 12 |
|
14 mm |
C 14 |
|
20 mm |
C 20 |
|
|
|
|
|
Flat axle end
|
|
Axles-Ø (mm)
|
art.num.
|
|
8 mm |
D 8 |
|
10 mm |
D 10 |
|
12 mm |
D 12 |
|
14 mm |
D 14 |
|
|
|
|
|
Spanner flat
|
|
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
E 10 |
|
12 mm |
E 12 |
|
14 mm |
E 14 |
|
20 mm |
E 20 |
|
|
|
|
|

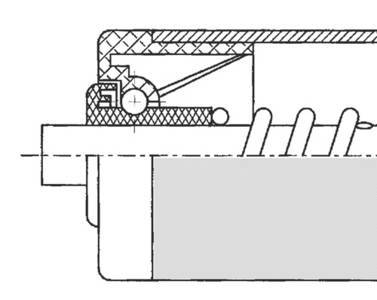

Spring axle
|
|
Axles-Ø (mm)
|
art.num.
|
|
8 mm |
F 8 |
|
10 mm |
F 10 |
|
12 mm |
F 12 |
|
|
|
|
|
Katalogseite: 157
|
|
