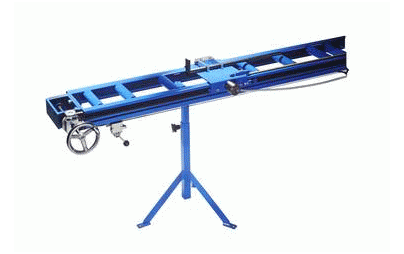

Konveierid mõõteseadmega

General user infornation:

• For trimming light, individual forns with a saw .
• There are two ways to set the length.
  • Manual adjustment of the measuring board (adjusting by hand).
  • Chain tension method with the hand wheel from the user's position at the saw. The board is halted by means of a pneumatic cylinder(chain adjustment).
• The stop plate can be folded away by hand (both variations)
• The selected length is read on the vernier scale line
on an integrated steel ruler tape.
• The length setting is exact to the millimetre (no finer setting)
• The roller conveyor must be firmly attached to the saw (roller conveyor fitted with suitable head plate).

frame:
Steel-C-forn frame, coated

supporting wheels:
blue plastic pipe Ø 50 x 2,8 mm, ball bearing scewed axles Ø 8 mm
variation:
galvanised steel pipe supporting wheels Ø 50 x 1,5 mm (please ask)

supports:
incl. supports
height of track top edge: 680 - 1100 mm
Measured lengths 2 m and 3 m incl. 2 supports each
Measured lengths 3 m bis 6 m incl. 3 supports each

laquering:
RAL 5015 blue

please note:
Please state the "mounting side" of the conveyor to the saw. The mounting side "left" or "right" - as seen from the operating position of the user. This infornation is important for the running direction of the scaling of the measuring tape.
