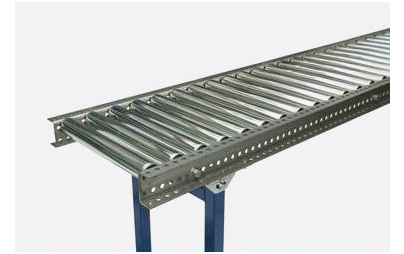

Rullkonveierid

Allg. Anwender-Infornationen:

• für den Transport von Stückgütern mit einem Gewicht bis zu 30 Kg / Stck (Richtwert).
• Der Boden des Fördergutes muß eben und stabil sein. Das Fördergut muss mind. 200 mm breit sein.
• Die Röllchenbahn sollte stets breiter als des Fördergut gewählt werden.
• Das kleinste Fördergut sollte mindestens auf 3 Stück Röllchen-Achsen aufliegen. (Achsabstand x 3 = Mindestlänge)
• Es können mehrere Bahnen zu langen Strecken miteinander verbunden werden (Sonderlängen möglich).
• Der Abstand der Stützen sollte nicht mehr als 2 m betragen. Werden mehrere Elemente kombiniert, so müssen die Stützen unter die Verbindungsstellen gesetzt werden.
• Für den Einsatz im trockenen Innenbereich.
• Die Tragkraft der Röllchenbahnen ist abhängig von Bahnbreite, Abstand der Rollen sowie dem Abstand der Stützen.

Rahmen:
U-Profil 20/70/20x2 mm Stahl, verzinkt mit Quertraversen verschraubt.

Röllchen:
Stahl-Röllchen, verzinkt Ø 48 mm, kugelgelagert verschraubte Achsen Ø 8 mm

Röllchenanordnung:

• Breite 300mm - 3 Stck/Achse, versetzt
• Breite 400mm - 4 Stck/Achse, versetzt
• Breite 500mm - 5 Stck/Achse, versetzt
• Breite 600mm - 6 Stck/Achse, versetzt
• Breite 800mm - 8 Stck/Achse, versetzt

Kurven:

• Innenradius 800 mm

* Hinweis:
bei Achsabstand 75 mm werden geliefert
 - statt Länge 1000 mm - Länge 975 mm
 - statt Länge 2000 mm - Länge 1950 mm

Planen Sie die Förderstrecken individuell nach ihren Erfordernissen. Leicht-Röllchenbahnen können den räumlichen Gegebenheiten angepasst geliefert werden.

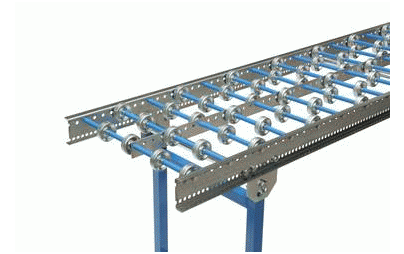

General user infornation:

• for transporting/conveying small, light goods.
• Dimensions of the smallest goods:
  • minimum 115 mm  at an axle interval of 37.5 mm
  • min. 150 mm  at an axle interval of 50 mm

  Individual goods must rest on a minimum of 3 supporting rollers
• The goods' base must be flat.
• The conveyor track must always be wider than the goods.
• A number of conveyors can be combined to forn longer lengths.(special lengths possible).
• The supports intervals should not be more than 2m. If a number of elements are combined supports must be positioned beneath the connecting parts.
• For operation in dry interior areas:
• the load capacity depends on the track width, roller distances and support intervals.

Frame:
galvanised steel 20/70/20x2 mm U-forn with screwed cross bars.

Support rollers:
blue plastic pipe Ø 20 x 1,5 mm with ball bearings

Curves:

• interior radius 800 mm:
• support rollers continuous or in multi-split mode.
• Width: 200 - 300 mm continuous
• Width: 400 mm in 2 elements
• Width: 500 mm 3 elements

You can plan the conveyors according to your requirements. Small roller conveyors can be delivered according to your individual local specifications.


General user infornation:

• for transporting/conveying small, light goods.
• Dimensions of the smallest goods:
  • minimum 115 mm  at an axle interval of 37.5 mm
  • min. 150 mm  at an axle interval of 50 mm

  Individual goods must rest on a minimum of 3 supporting rollers
• The goods' base must be flat.
• The conveyor track must always be wider than the goods.
• A number of conveyors can be combined to forn longer lengths.(special lengths possible).
• The supports intervals should not be more than 2m. If a number of elements are combined supports must be positioned beneath the connecting parts.
• For operation in dry interior areas:
• the load capacity depends on the track width, roller distances and support intervals.

Frame:
galvanised steel 20/70/20x2 mm U-forn with screwed cross bars.

Support rollers:
blue plastic pipe Ø 20 x 1,5 mm with ball bearings

Curves:

• interior radius 800 mm:
• support rollers continuous or in multi-split mode.
• Width: 200 - 300 mm continuous
• Width: 400 mm in 2 elements
• Width: 500 mm 3 elements

You can plan the conveyors according to your requirements. Small roller conveyors can be delivered according to your individual local specifications.

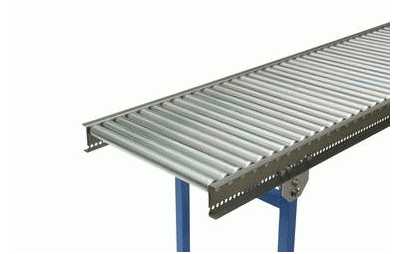

General user infornation:

• medium-heavy roller conveyors are the ideal addition to areas where light conveyors would be too weak and heavy duty conveyors oversized.
• The conveyors' support strength is, according to its type (division, width, support intervals) up to 150 Kg/ m
• The roller conveyor must always be wider than the selected goods.
• The smallest goods must rest on at least 3 roller axles at one time. (axle distance x 3 = minimum length)
• A number of tracks may be combined to forn a longer lengths (special lengths possible).
• The supports intervals should not be more than 2m. If a number of elements are combined supports must be positioned beneath the connecting parts.
• The conveyors are combined by means of the supports.
• For operation in dry interior areas.

frame:
40/80/40x3 mm U-forn galvanised steel with screwed cross bars.

Support rollers:
galvanised steel piping Ø 50 x 1,5 mm, sprung axles with ball bearings Ø 10 mm

Curves:

• interior radius 1000 mm
• Support rollers continuous according to track width, or multi-split.
• width 300 mm continuous
• width 400 - 800 mm 2 elements
• width 900 - 1000 mm 3 elements

You can plan the conveyors according to your requirements. medium heavy roller conveyors can be delivered according to your individual local specifications
