Liuguste tarvikud

Profiil:
70x70mm
Kood Kandevõime Kaal Profiil Rullik. Rullikute tüüp Lisainfo
  kg kg mm mm

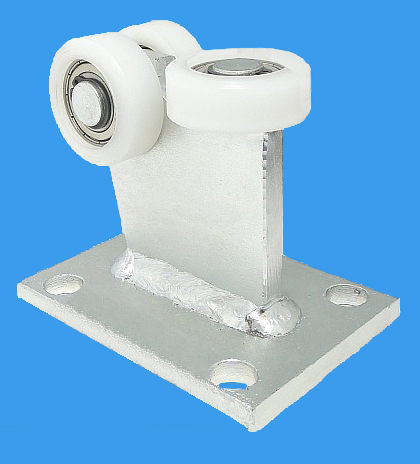

V70-3PPL 180 2,44 70x70x4 ø60,5 3 x polyamide 3 rolls, fixed without height adjustment
V70-2M1PPL 350 2,86 70x70x4 ø60,5 2 x metal 1 x polyamide 3 rolls, fixed without height adjustment
V70-3MPL 350 3,1 70x70x4 ø60,5 3 x metal 3 rolls, fixed without height adjustment
V70-3PPLM 180 2,25 70x70xx4 ø60,5 3 x polyamide
small plate
3 rolls, fixed without height adjustment

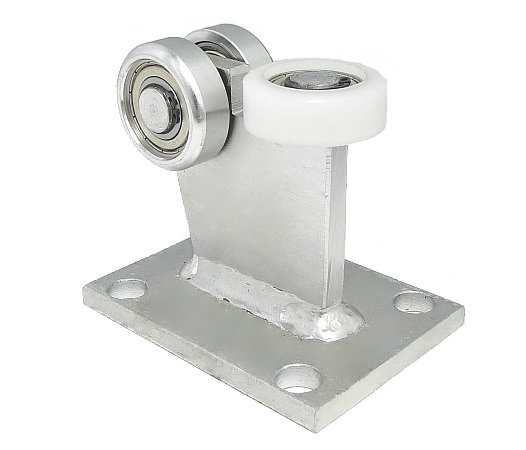

V70-2M1PPLM 320 2,76 70x70x4 ø60,5 2 x metal 1 x polyamide
small plate
3 rolls, fixed without height adjustment
V70-3MPLM 320 2,56 70x70x4 ø60,5 3 x metal
small plate
3 rolls, fixed without height adjustment

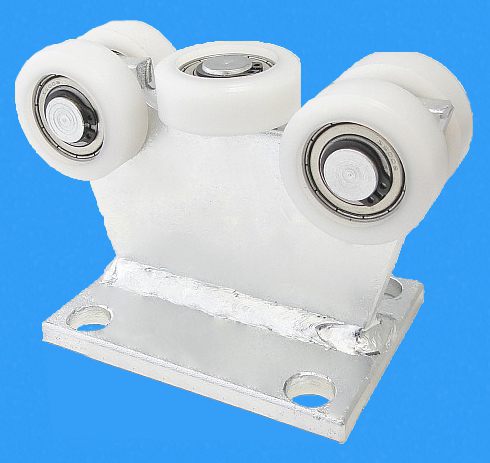

V70-5PPL 400 3,38 70x70x4 ø60,5 5 x polyamide 5 rolls, fixed without height adjustment

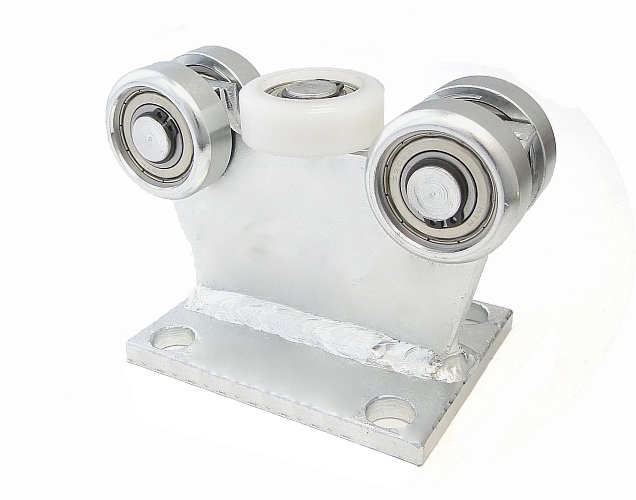

V70-4M1PPL 700 4,02 70x70x4 ø60,5 Metal 4 x 1 x polyamide 5 rolls, fixed without height adjustment
V70-5MPL 700 6,76 70x70x4 ø60,5 5 x Metal 5 rolls, fixed without height adjustment
V70-5PPLM 300 1,39 70x70x4 ø60,5 5 x ppolyamide
small plate
5 rolls, fixed without height adjustment

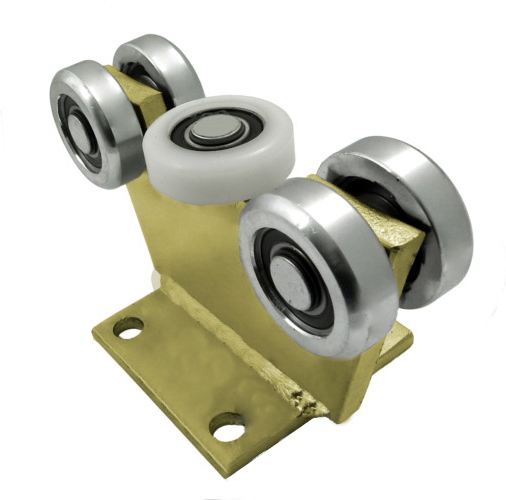

V70-4M1PPLM 600 1,42 70x70x4 ø60,5 Metal 4 x 1 x polyamide
small plate
5 rolls, fixed without height adjustment

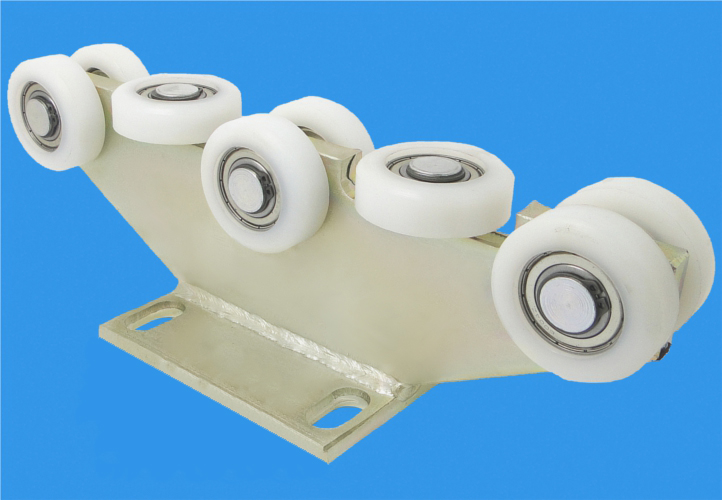

V70-8PPL 600 5,04 70x70x4 ø60,5 8 xpolyamide 8 rolls, fixed without height adjustment

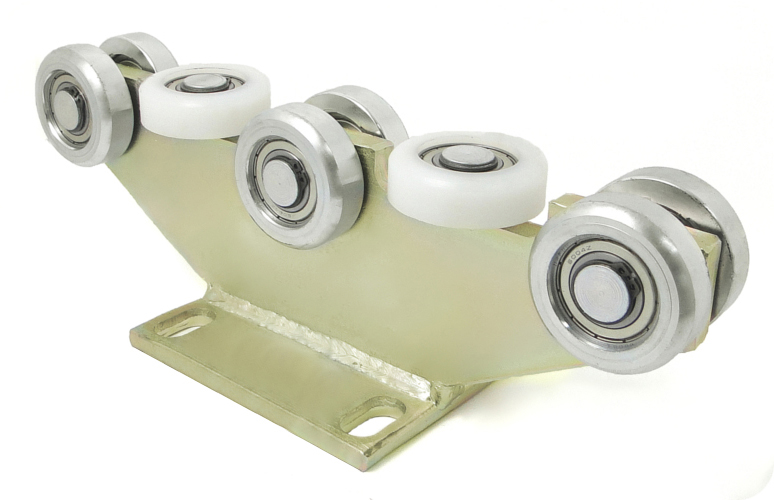

V70-6M2PPL 1200 6,5 70x70x4 ø60,5 6 x 2 x metal polyamide 8 rolls, fixed without height adjustment
V70-8MPL 1200 7,1 70x70x4 ø60,5 8 x Metal 8 rolls, fixed without height adjustment

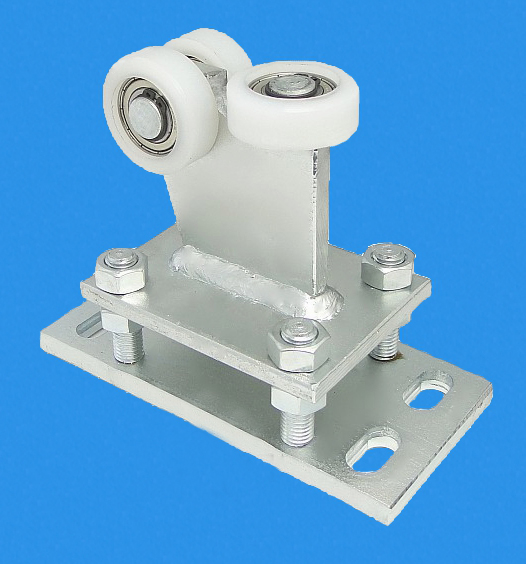

V70-R3PPL 180 4,46 70x70x4 ø60,5 3 x polyamide 3 rolls, standing height adjustment
V70-R2M1PPL 350 5,2 70x70x4 ø60,5 2 x metal 1 x polyamide 3 rolls, standing height adjustment
V70-R3MPL 350 5,41 70x70x4 ø60,5 3 x metal 3 rolls, standing height adjustment

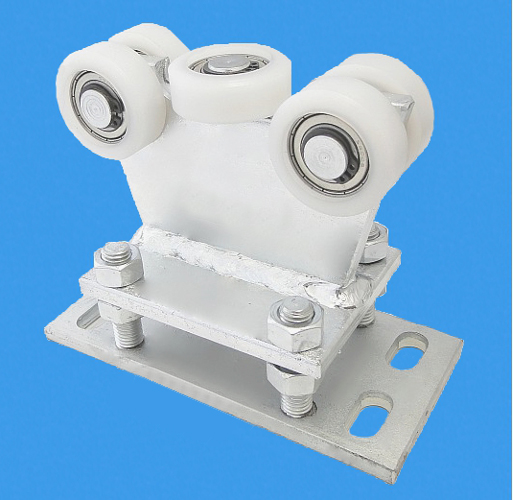

V70-R5PPL 400 5,2 70x70x4 ø60,5 5 x polyamide 5 rolls, standing height adjustment

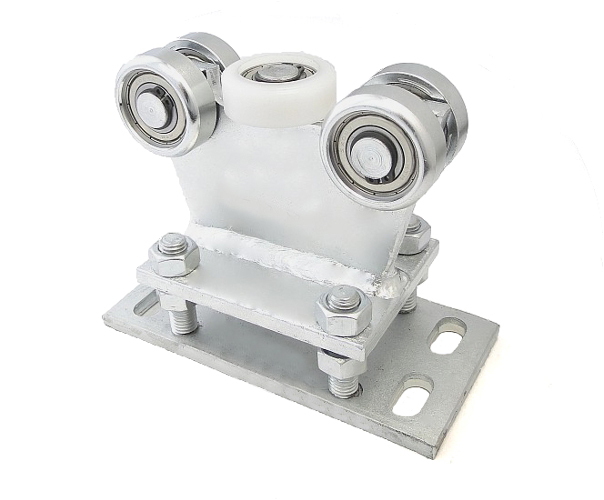

V70-R4M1PPL 700 6,12 70x70x4 ø60,5 Metal 4 x 1 x polyamide 5 rolls, standing height adjustment
V70-R5MPL 700 6,76 70x70x4 ø60,5 5 x Metal 5 rolls, standing height adjustment

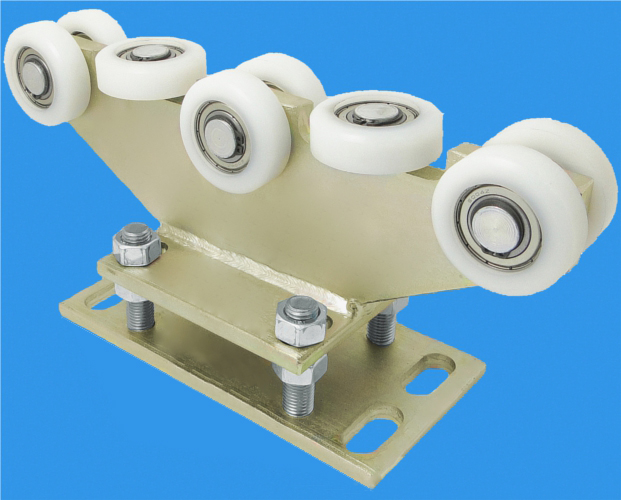

V70-R8PPL 600 7,47 70x70x4 ø60,5 8 x polyamide 8 rolls, standing height adjustment
V70-R6M2PPL 900 6,37 70x70x4 ø60,5 6 x 2 x metal polyamide 8 rolls, standing height adjustment
V70-R8MPL 900 6,37 70x70x4 ø60,5 8 x Metal 8 rolls, standing height adjustment

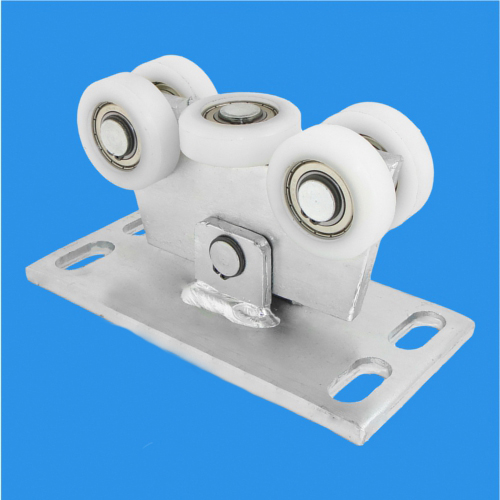

V70-W5PPL 400 4,19 70x70x4 ø60,5 5 x polyamide 5 rolls, swinging without height adjustment

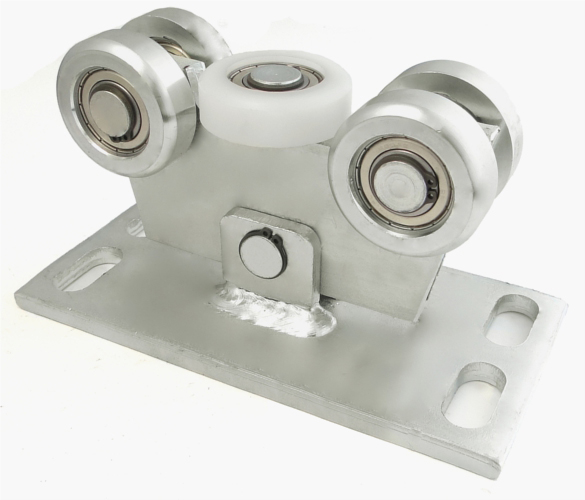

V70-W4M1PPL 700 4,78 70x70x4 ø60,5 Metal 4 x 1 x polyamide 5 rolls, swinging without height adjustment

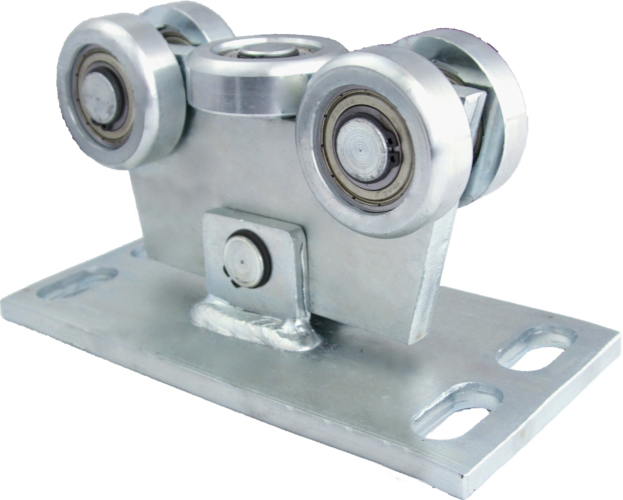

V70-W5MPL 700 5 70x70x4 ø60,5 5 x Metal 5 rolls, swinging without height adjustment
V70-W5PPLM 600 4,19 70x70x4 ø60,5 5 x polyamide
small plate
5 rolls, swinging without height adjustment
V70-W4M1PPLM 600 4,1 70x70x4 ø60,5 Metal 4 x 1 x polyamide
small plate
5 rolls, swinging without height adjustment
V70-W8PPL 600 6,38 70x70x4 ø60,5 8 x polyamide 8 rolls, self-aligning, without height adjustment
V70-W6M2PPL 900 6,2 70x70x4 ø60,5 6 x 2 x metal polyamide 8 rolls, self-aligning, without height adjustment

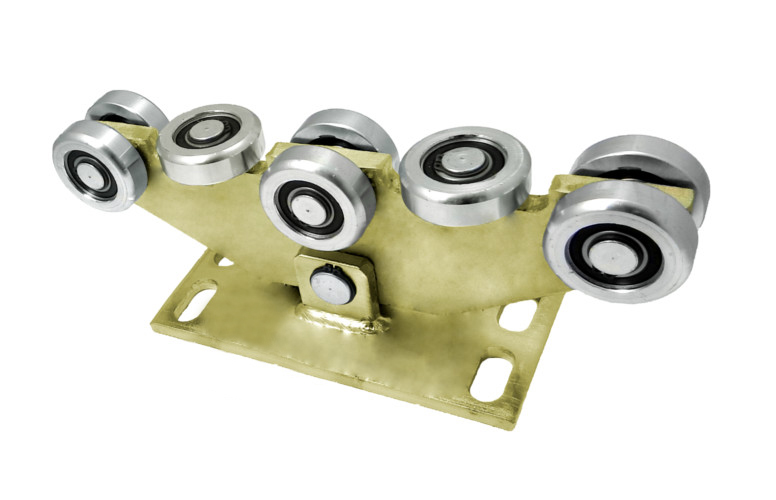

V70-W8MPL 900 7,5 70x70x4 ø60,5 8 x Metal 8 rolls, self-aligning, without height adjustment

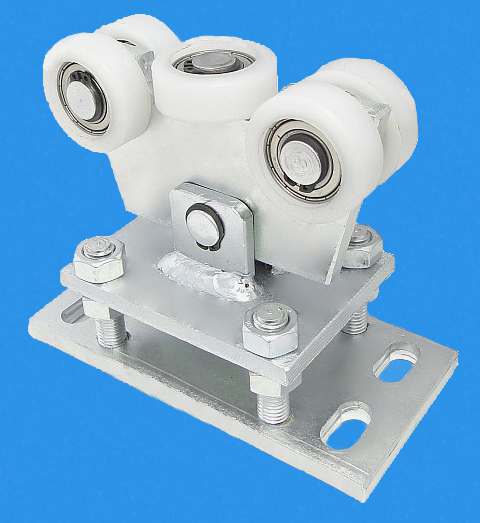

V70-WR5PPL 400 5,55 70x70x4 ø60,5 5 x polyamide 5 rolls, swinging with height adjustment
V70-WR4M1PPL 700 6,57 70x70x4 ø60,5 Metal 4 x 1 x polyamide 5 rolls, swinging with height adjustment

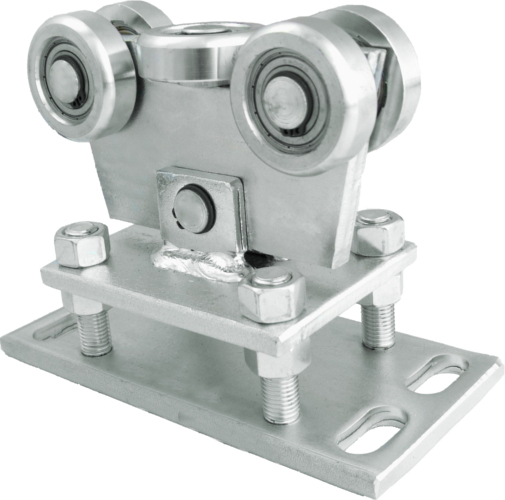

V70-WR5MPL 700 6,42 70x70x4 ø60,5 5 x Metal 5 rolls, swinging with height adjustment
V70-WR5PPLM 400 4,35 70x70x4 ø60,5 5 x polyamide
small plate
5 rolls, swinging with height adjustment

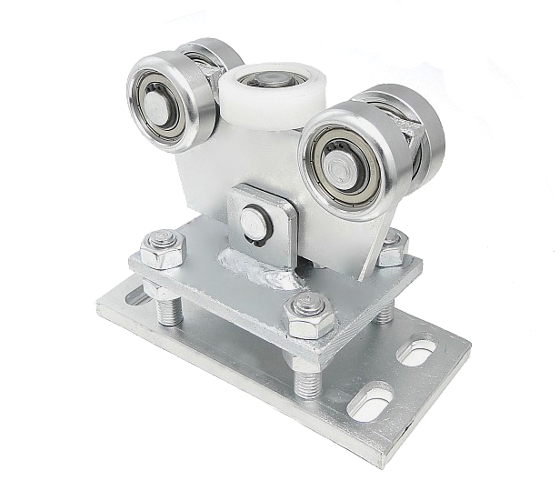

V70-WR4M1PPLM 700 4,89 70x70x4 ø60,5 Metal 4 x 1 x polyamide
small plate
5 rolls, swinging with height adjustment
V70-WR5MPLM 700 5,12 70x70x4 ø60,5 5 x Metal
small plate
5 rolls, swinging with height adjustment

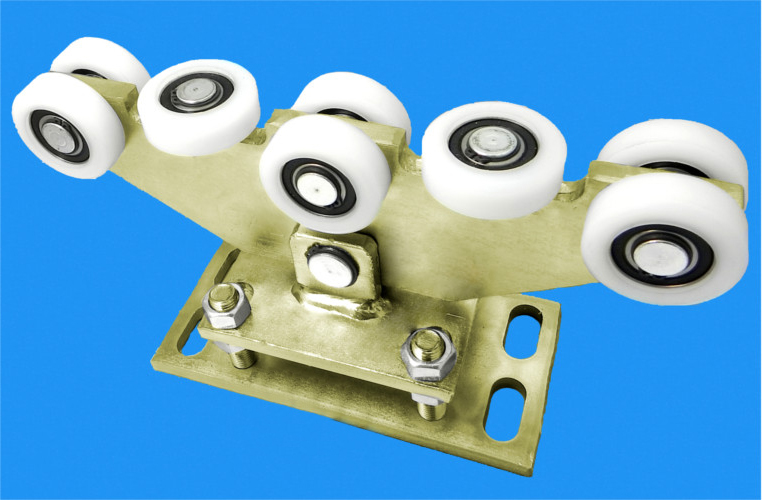

V70-WR8PPL 600 9,1 70x70x4 ø60,5 8 x polyamide 8 rolls, self-aligning with adjustable height
V70-WR6M2PPL 900 8,76 70x70x4 ø60,5 6 x 2 x metal polyamide 8 rolls, self-aligning with adjustable height

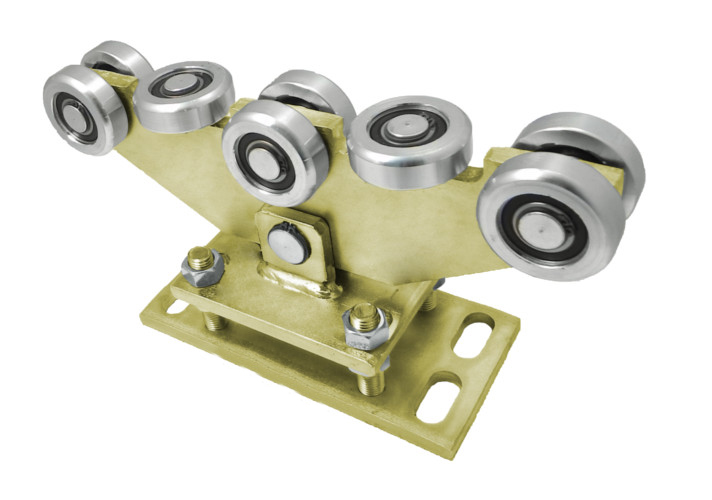

V70-WR8MPL 900 9,5 70x70x4 ø60,5 8 x Metal 8 rolls, self-aligning with adjustable height
V70-2PW 60 0,8 70x70x4 ø60,5 2 x polyamide 2 wheel with a flat bar
V70-2MW 100 1,07 70x70x4 ø60,5 2 x Metal 2 wheel with a flat bar

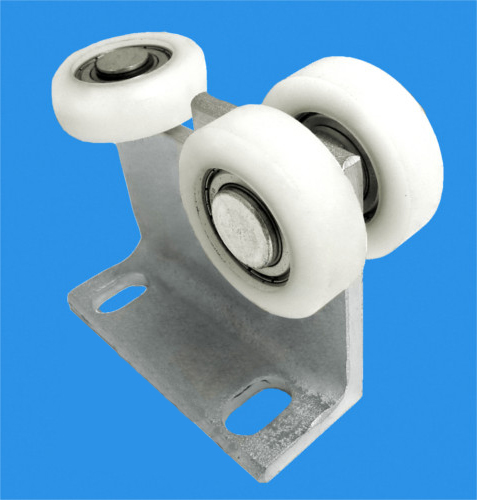

V70-3PPLS 150 1,87 70x70x4 ø60,5 3 x polyamide 3 rolls with angle

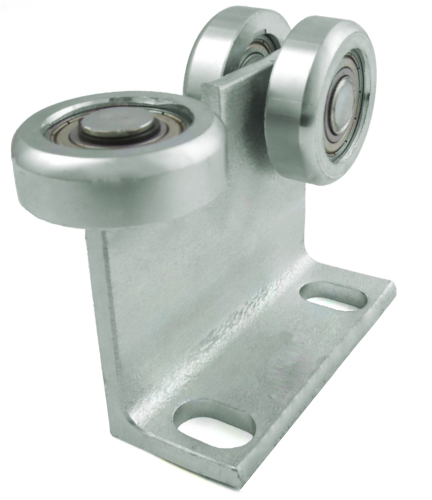

V70-3MPLS 250 2,01 70x70x4 ø60,5 3 x metal 3 rolls with angle
V70-3PW 180 1,32 70x70x4 ø60,5 3 x polyamide 3 rolls of flat bar
V70-2M1PW 350 1,67 70x70x4 ø60,5 2 x metal 1 x polyamide 3 rolls of flat bar
V70-3MW 350 1,8 70x70x4 ø60,5 2 x Metal 3 rolls of flat bar
V70-5PW 400 2 70x70x4 ø60,5 5 x polyamide 5 rolls of flat bar
V70-4M1PW 700 2,1 70x70x4 ø60,5 Metal 4 x 1 x polyamide 5 rolls of flat bar
V70-5MW 700 2,4 70x70x4 ø60,5 5 x Metal 5 rolls of flat bar

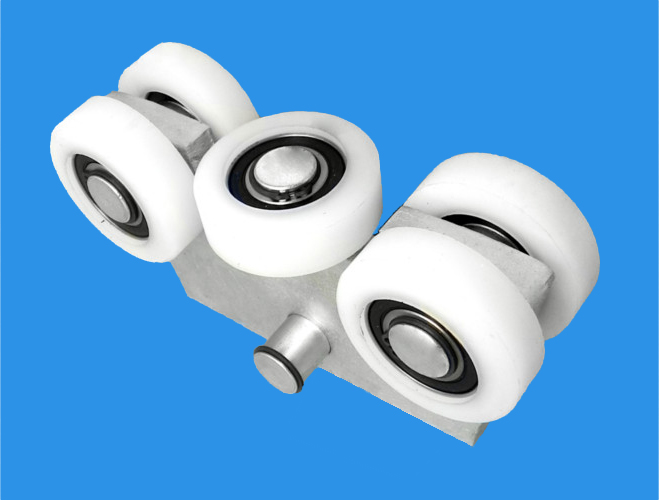

V70-5PA 400 2,2 70x70x4 ø 60,5 5 x polyamide 5 rolls of flat bar
V70-4M1PA 700 2,89 70x70x4 ø 60,5 Metal 4 x 1 x polyamide 5 rolls of flat bar

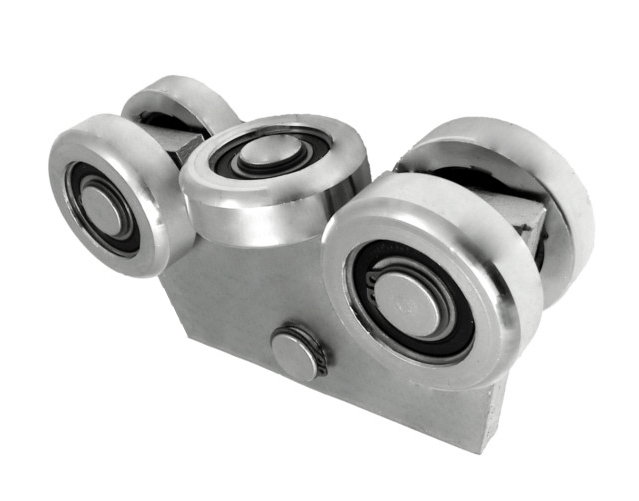

V70-5MA 700 2,95 70x70x4 ø60,5 5 x Metal 5 rolls of flat bar
V70-8PA 600 4,05 70x70x4 ø60,5 8 x polyamide 8 rolls of flat bar
V70-6M2PA 900 5,1 70x70x4 ø60,5 6 x 2 x metal polyamide 8 rolls of flat bar
V70-8MA 900 7,4 70x70x4 ø60,5 8 x Metal 8 rolls of flat bar
